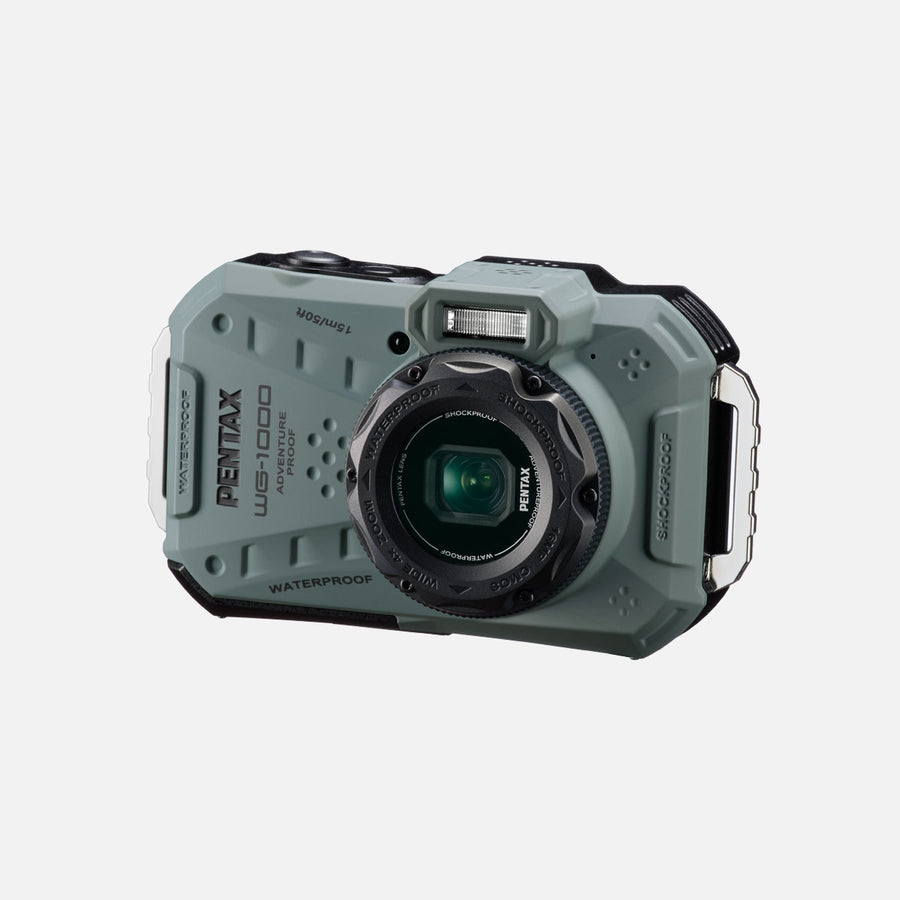

PENTAX WG-1000 Digital Camera
Entry-class, waterproof digital compact camera, designed for casual underwater photography to a depth of 15 me-ters, for up to one hour of continuous operation- Reliable all-weather housing that is waterproof to a depth of 15 metres
- Back-illuminated CMOS image sensor with approx. 16.35 effective megapixels
- 4x optical zoom lens
- Built-in-flash
- Seven different shooting mode
- 20 colour modes available to create images according to your own ideas
- Full HD Movie recording
- Useful accessories included in the scope of delivery
- Can be sterilised with special solvents
An all-weather outdoor camera with superb waterproof performance
The WG-1000 offers advantages that smartphones and many cameras do not - it can also be used in conditions where it gets really rough and wet. Many people know the situation when they have to concentrate fully on their sport, such as canoeing or climbing, but still want to capture these exciting moments in the picture. This is where the WG-1000 comes into its own.
PENTAX WG-1000 MAIN FEATURES
A solid, all-weather body for protection against dust and water
The PENTAX WG-1000 has a reliable all-weather housing that is waterproof (JIS Class 8) to a depth of 15 metres and can be operated continuously for up to one hour; it is dustproof (JIS Class 6) against dirt and stains and shockproof* even against falls from a height of up to two metres. Thanks to this robust construction, the WG-1000 can be used for a wide range of activities, even in harsh, demanding conditions, and even for underwater shooting. A special feature opens up further usage options.
Sharp, clear images The WG-1000 features a back-illuminated CMOS image sensor with approximately 16.35 effective megapixels and outstanding light reception efficiency to deliver sharp, clear, high-resolution images. |
4x optical zoom lens Within its compact, lightweight body, it features a four-times optical zoom lens with a focal-length coverage from 4.9 mm to 19.6mm (equivalent to approx. 27mm to 108mm in the 35mm format) to accommodate a wide range of applications. When coupled with its Digital Zoom function, you can extend the zoom range by approximately 24 times. |
Dependable protection against ethanol, sodium hypochlorite and chlorine dioxide solutionsSince the WG-1000 can be safely sterilized with solutions containing ethanol, sodium hypochlorite (approved as a disinfectant of food additives) or chlorine dioxide, you can use it at medical facilities and production lines. |
If you would like to learn more, please visit our special page: PENTAX WG-1000
WG-1000 digital camera Frequently asked questions and corresponding answers
Q: How is the performance of waterproof / dustproof / shockproof?
A: • This camera is provided with a waterproof / dustproof design complying with JIS waterproof grade 8 and JIS dustproof grade 6 (equivalent to IP68).
• The camera satisfies the PENTAX drop test (1.6m height onto a 5cm thick plywood surface) complying with MIL-Standard 810F Method 516.5-Shock testing.
• The camera satisfies the PENTAX test for the waterproof, dustproof, and shockproof performance, but this does not guarantee it will remain free of trouble or damages.
• Waterproof performance is not guaranteed if the camera is exposed to impact such as being dropped or hit.
*The camera's accessories are not waterproof.
Q: Is there a function to reduce camera shake?
A: Yes, the camera is equipped with an electronic image stabilization function in still image mode. The camera is not equipped with an image stabilization function in movie mode.
Q: What is the recording format?
A: Still image: JPEG (Exif 2.3 ), DCF 2.0 Video: MOV (video: H.264, linear PCM monaural audio)
Q: Is there a waterproof case (under water housing) that can be used in a deeper place? A: There is no scheduled at the moment.
Q: What types of SD memory cards can be used?
A: SD cards, SDHC cards, SDXC cards.
*We do not guarantee the operation of memory cards used through the adapter, and we do not recommend the use of micro-SD cards. Please use SD, SDHC, or SDXC cards.
*The camera has a built-in memory. (Capacity: approx. 29 MB)
Q: Can the D-LI96 rechargeable lithium-ion battery be charged in the camera body?
A: Use the USB power adapter and USB cable included with the product to charge the battery from a power outlet (wiring plug-in connector).
Q: Is there an AC adapter for the camera?
A: There is no AC adapter kit available for the WG-1000.
Q: Can this camera be used as a webcam?
A: No.
Q: Does the camera come with application software?
A: No.
You can find the complete FAQ catalogue under this link...
Frequently bought together
Downloads
Download Product Information Sheet
FAQ
PENTAX WG-1000 Technical Specifications
MODEL DESCRIPTION |
|
---|---|
Camera Type
|
Zoom-compact digital-still camera |
LENS |
|
---|---|
Construction
|
PENTAX lens, 7 elements in 7 groups |
Focal Length
|
4.9 - 19.6mm |
Max. Aperture
|
F3.0(W) - F6.6(T) |
Zoom Ratio
|
Optical Zoom: 4x |
Focal length (Macro)
|
4.9mm |
Maximum Magnification
|
Approx. 0.087 x (Wide only) |
IMAGE CAPTURE UNIT |
|
---|---|
Image Sensor
|
1/2.3" CMOS |
Pixels
|
Total: approx. 16.76 megapixels |
Still image: File Format / Recorded Pixels
|
JPEG (conforms to Exif 2.3) |
Movie: File Format / Recorded Pixels
|
MOV(H.264) |
Audio: File Format
|
48KHz, 16bit, monaural |
Sensitivity
(Standard output) |
AUTO, Manual (ISO 125 - 3200) |
White Balance
|
AWB,Daylight,Cloudy,Fluorescent,Fluorescent CWF,Incadescent, Manual WB,Color Temp.,Underwater |
Motion Blur Reduction
|
Electronic SR for Still only |
Noise reduction
|
Noise reduction processing is always on |
FOCUS |
|
---|---|
Focus type
|
TTL contrast detection auto focus system, with AF Assist Beam 25-point Single AF / Multi AF |
Focus Range (From lens face)
|
Standard: 0.6m - infinity / 1.97ft. - infinity (Wide) / 1m - infinity / 3.3ft. - infinity (Tele) |
Face Detection
|
Face Detection is available for up to 12 faces. Detects smiles and blinks. |
EXPOSURE CONTROL |
|
---|---|
Metering System
|
AIAE, Center, Spot |
EV Compensation
|
± 3EV ( 1/3EV steps) |
Shutter Speed
|
1/2000 - 4sec. (Manual 30sec.) |
Capture modes
|
Auto Mode (Auto, Landscape, Portrait, Backlit Portrait, Night Portrait, Night Landscape, Macro), Program AE ,Manual Mode, Movie Mode, Scene Mode, Underwater Mode, CALS Mode |
Scene Modes
|
Portrait, Landscape, Sport, Beach, Sunset, Fireworks, Night Landscape, Snow, Children, Panorama Mode, Glass, Anti‐shake, Panning Shot, Night-Portrait, Party, Indoor, Leaf, Museum |
BUILT-IN FLASH |
|
---|---|
Modes
|
Force Off, Flash Auto, Fill Flash, Slow Sync., Slow Sync.∔Red‐Eye, Red-Eye Reduction |
Flash Range
|
Wide: approx. 0.3 - 5.2m / 0.98 - 17 ft. (ISO Auto) |
LCD MONITOR |
|
---|---|
Display Type
|
TFT color 2.7" LCD, approx. 230K dots, HD-Coating (Cover only) |
MEMORY |
|
---|---|
Storage Media
|
Built-in Memory (approx. 29MB) SD/SDHC/SDXC Memory Card |
FUNCTION |
|
---|---|
Drive Modes
|
Single, Continuous Shot, Continuous Shot-High Speed(VGA), Continuous Shot-Fast(4M), Time-Lapse 30sec, Time-Lapse 1min, Time-Lapse 5min, Time-Lapse 10min, |
Self- timer count
|
2sec, 10sec, Self-Timer Smile |
Start-up Time
|
Approx. 2.0 sec. |
Release Time Lug
|
Approx. 0.06sec. |
Continuous shooting
|
Approx. 1.42 frames/sec. |
Max. frames at conti. Shooting
|
Approx. 6 frame(When set to 16M) |
High speed continuous shooting
|
Approx. 30 fps, 4M(4:3): up to 50 frames, |
Playback functions
|
One Shot, Index (20 thumb nails, 81 thumb nails), Enlargement (up to 10X, scroll available), Movie Playback, Histogram, Folder display, Delete, Select&Delete, Delete All, Calendar |
Playback modes
|
One Shot, Index (9 thumb nails, 16 thumb nails), Enlargement (up to 8X, scroll available), Movie Playback, |
Digital filter
|
Playback only - Vivid, Japan Style, Italian Style, French Style, Punk, Black and White, Sepia, Partial Color-Red, Partial Color-Blue, Partial Color-Yellow, Partial Color-Green, Negative, Dreamy, Vignetting, Salon, Fish Eye, Reflection, 4Grids ‐ Stylish |
Languages
|
Traditional Chinese, Simplified Chinese, Japanese, Korean, English, French, Spanish, Portuguese, Italy, Germany, Russian, Swedish, Danish, Indonesian, Norwegian, Hungarian, Greek, Polish, Vietnamese, Thai, Dutch, Turkey, Czech, Croatian, Hindi, Arabic, |
Date Imprint
|
Date Imprint Available (Date, Time, Date & time) (except Green) |
OPERATING ENVIRONMENT |
|
---|---|
Water proof /
Dustproof |
Equivalent to JIS Class 8 waterproof and JIS Class 6 dustproof capabilitie - Waterproof - Up to 15m up to 1 hour |
POWER SUPPLY |
|
---|---|
Power Source
|
Rechargeable Battery D-LI96 |
Battery life
|
Still*1: approx. 300 shots |
Charging
|
internal, (USB Type-C) approx. 150 min. |
INTERFACES |
|
---|---|
Connection Port
|
USB2.0 (Type C), HDMI output terminal (Type D) |
DIMENSIONS AND WEIGHT |
|
---|---|
Dimensions
|
Approx. 116 (W) x 68.5 (H) x 50.5 (D)mm /4.6 (W) x 2.7 (H) x 2.0 (D) inches (including lens depth) |
Weight
|
Approx. 220g / 7.87 oz. (Included dedicated battery and SD memory card),Approx. 200g / 7.1 oz.(Body only) |
SYSTEM REQUIREMENTS |
|
---|---|
Windows®
|
Windows® 8.1, Windows® 10, Windows® 11 |
Macintosh
|
macOS 11.0, macOS 12, macOS 13, macOS 14 |
*Supported OS must be pre-installed in PC and updated to the latest version.
USB port must be standard equipped.
INCLUDED ACCESSORIES |
|
---|---|
|
Rechargeable Li-Ion Battery - D-LI96 |
OPTIONAL ACCESSORIES |
|
---|---|
|
Art. No. 35293 - Rechargeable Li-Ion Battery D-LI96 |
ARTICLE CODES |
|
---|---|
|
Art. No. 02154 - PENTAX WG-1000 Gray |
MARKET LAUNCH |
|
---|---|
|
June 2024 |
